Controlador de amperaje variable, caja de control para destiladores 208 V-240 V monofásico

13 reseñas
$142.00 USD

Free shipping worldwide by Express Services(UPS/Fedex/DHL, 6-10 work days)

Los controladores de amperaje variable son ideales para tanques de destilación, cubas de maceración, fermentadores y diversas calderas encamisadas donde se utilizan resistencias como fuente de calor. Permiten ajustar la potencia de las resistencias de 0 a 100 % de forma continua mediante un potenciómetro. Se puede configurar la potencia de salida al 100 % de la capacidad de la resistencia al iniciar el calentamiento y, cuando la temperatura alcanza el punto de destilación, se puede reducir la potencia, por ejemplo, a un 30 % para mantener la temperatura en un rango adecuado para la destilación.

Si está buscando un controlador personalizado en 3 fases (415 V 3 fases, 380 V 3 fases, 220 V 3 fases, etc.) o con otras funciones como PID, contáctenos, podemos fabricar controladores específicamente según sus necesidades.

Para obtener instrucciones de cableado, haga clic aquí

Especificaciones principales:
Tamaño del SSR: 80 A

El SSR de 80 A puede manejar un elemento monofásico de hasta 5,5 kW y 220 V, por lo que está bien si su elemento es inferior a 5,5 kW.

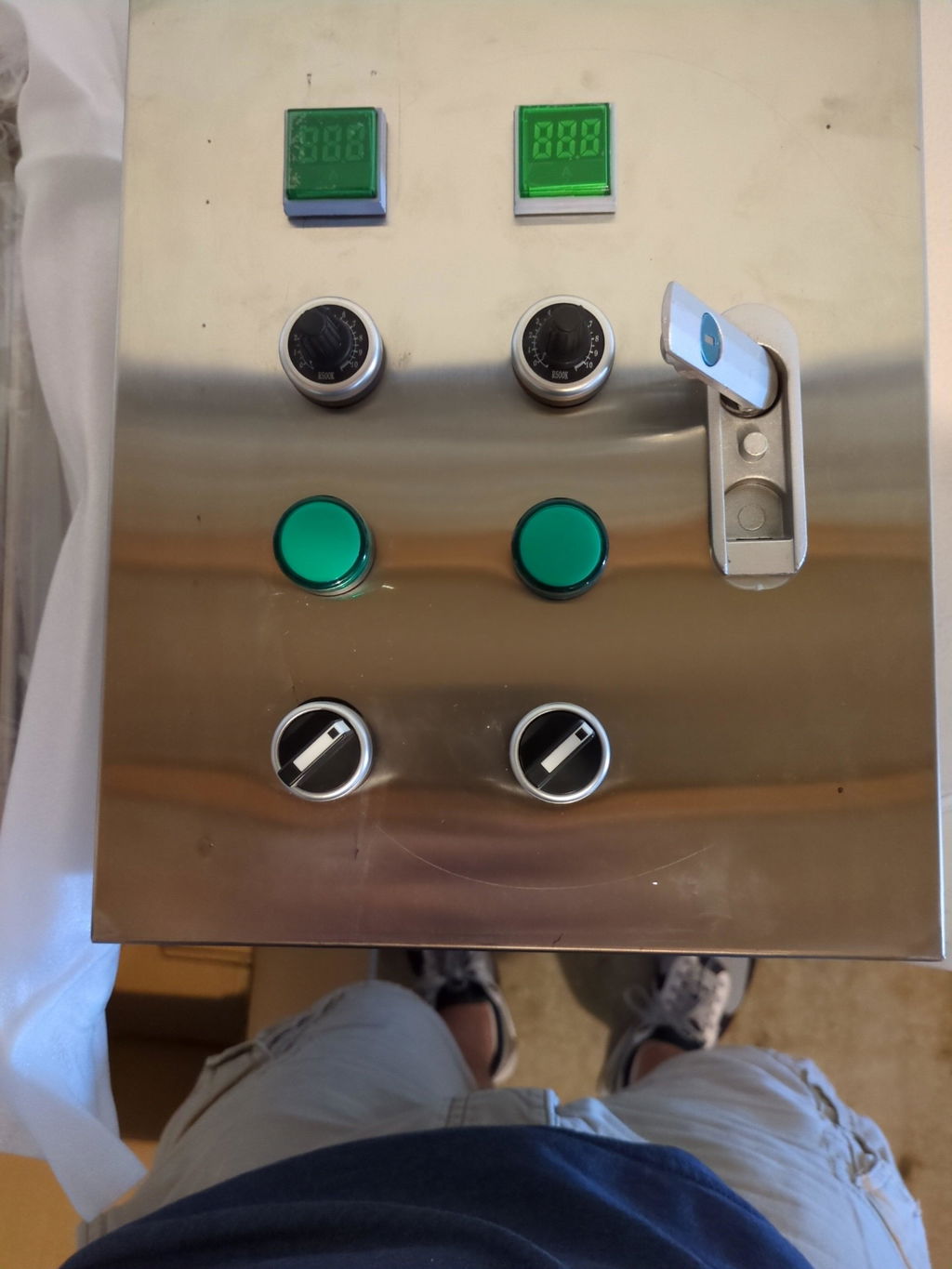

Cada elemento está conectado a un SSR de 80 A y controlado por un potenciómetro con un interruptor para encender/apagar el elemento; el medidor de amperaje se utiliza para leer los amperios totales de los elementos.

Tipo:

Los artículos en stock generalmente se pueden enviar dentro de 7 días hábiles. Para devoluciones, envíenos un correo electrónico directamente.

Ofrecemos un año de garantía para todos los artículos vendidos en este sitio, excepto juntas y sellos. El período de garantía comienza en la fecha de entrega y también cubriremos los gastos de envío de los reemplazos.

  • 5 stars: 8 (62%)
  • 4 stars: 0 (0%)
  • 3 stars: 2 (15%)
  • 2 stars: 1 (8%)
  • 1 star: 2 (15%)
T
T Baldwin
Controll box for distillers

Recieved with a dent in cover, might bump out?? The potentiometer turned all the way down, still draws 8 amps of power, so it's always on.. is there another option? I don't really want to wait another month plus for returns ..

B
Brian
Perfect for my still

Ordered a custom 2 5500w element controller. There was an issue when I went to check my order status so I sent and email. My email got a response within hours and found out there was a misunderstanding about what I ordered. The issue was quickly resolved and a unit was shipped to me express mail. When the unit arrived it was exactly how I wanted it well put together. My friend who's an electrical engineer looked the unit over and was impressed. I couldn't have built a unit for what I paid for this controller. I admit I was worried especially after the issue with the order ,but oak stills made everything right! I would absolutely purchase from again!

R
Rob walker
I don't have it yet

I'd love to give a positive review, but I don't have it.

T
Tuomo Rissanen

Variable AMPs Controller, Control Box For Distillers 208V-240V 1PH

R
Randy Hanford
Question

I really like the quality of the control box but one question/statement I have is — is there supped to be current (8.4 v) moving back into my copper pot. I’ve only used the controller for a clean out run with water and vinegar. I have a tester that beeps if there’s current on something. I had it with me during my clean out and I’m getting voltage on my pot. I’ve checked the breaker/ plug/ receptacle and everything is right. Any ideas ??????

E
Eric Jolly
Simple, works, easy to install

If you know anything about electrical work, and even if you don't, it's super simple to wire up, and works great. Shipping was no time to the southern US as they use ups worldwide. Really nice folks. Thanks

G
Gary Jones Sr.
Control Box for Distillers

Control Box arrived no dings or scratches in box. Box guts neatly & professionally wired, very neat job. Very satisfied with price for quality!

S
Scott Turner
Works great

The only improvement could be to add a cooling fan so the temperature adjustment responds a little quicker.

J
John Keller
Doesn't work...

Both outputs on the box had no adjustment. When turned on, it was full power regardless of setting. After troubleshooting it was determined that the 10k pots were the culprit. The ssvr requires 470k ohm pots to operate across it's full range. I have an eaton m22-r470k on the way.

M
Marcus Radny
Variable AMP contoller - dual element

Answered all questions I had in a timely manner, and shipped quickly. CN to AUS was about 9 days, and over the xmas period, too.

Actual box arrived and was fairly scratched up, not looking the best.

wired it in myself and got it going first shot. Its a well priced bit of equipment and is doing the job nicely.

K
Kevin Hayslip
Control Box

The product was fulfilled in a very timely manner and operated as expected. Would recommend oak stills to any in the future and will be my new go to source for any future needs.

p
pablo rosaly
good

very happy with this company getting a 3rd order ready.

A
Anonymous
Controller

The controller was shipped quickly. I didn’t read the item description closely enough. I didn’t realize that it didn’t come with power cables. One other suggestion is to add cooling fans. The box looks great but is very thin and easily bent
