All the parts/boilers are welded by qualified welders and will be pressure tested for leaks when it's finished, the system is rated at 0.1MPa.
Built from heavy gauge 304 stainless steel and t2 lead free 99.9% copper from big name manufacturers. Can provide certificates if needed.
Ideal for making moonshine, whiskey, vodka, gin, brandy, grappa etc.
Can produce up to 96abv alcohol.
Modular design so you can run the still as few or as many sections according to the distillation needs.
1） For the column:

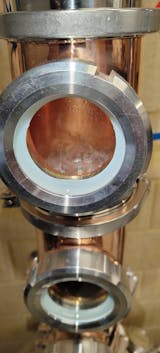

4*4" copper sight glass tees
4*4" copper bubble plates
1*stainless 4" dephlegmator
1*stainless 4" to 2" reducer with dial thermometer
1*stainless 2" 180deg bend
1*stainless 2" shotgun condenser
1*stainless surge breaker
1*stainless parrot with sampling valve
With all the needed tri clamps, gaskets
2） For the boiler：
1*100Lt（26 gallons） stainless steel boiler
2*3Kw ulwd heating elements
1* dial thermometer
1* 1" triclamp ball valve(drain)
1* 2" triclamp filling port with end cap
3） Variable AMPs controller with 2*3Kw heating elements (does not include plug, wires, needs to be hooked up by a qualified electrician)
4）Red and blue water lines and push in fittings kit
